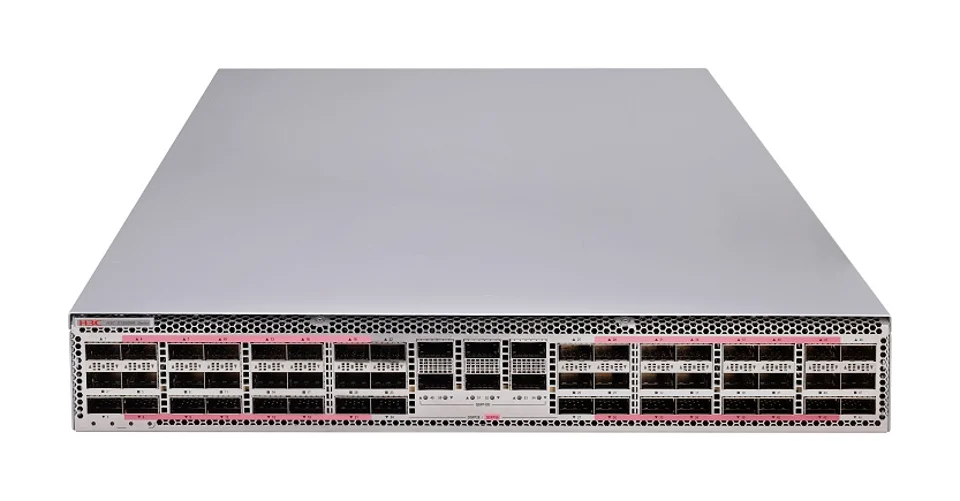

H3C LS-12500R-48C6D
Brand H3C
N/AVerified

H3C LS-12500R-48C6D

Model (MPN)
0235A4FU
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

H3C LS-12500R-48C6D Ethernet Switch Router Chassis, 48 QSFP28-Portand6 x QSFP-DD Port. Switching Capacity (Tbps): 14.4/43. Packet Forwarding Rate (Mpps): 5,400. Weight (Full Configuration): ≤20 kg

Key Specifications

DescriptionH3C S12500R-48C6D Ethernet Switch Router Chassis,Supports 48 x QSFP28-Portand6 x QSFP-DD Port
Switching Capacity (Tbps)14.4/43
Packet Forwarding Rate (Mpps)5,400
Weight (Full Configuration)≤20 kg
Dimensions (H×W×D) mm65.5 x 440 x 660(1.5U)
Ambient temperatureOperating ambient temperature: 0℃~40℃ Storage ambient temperature: -40℃~70℃
Your Price
Best Value
$33,600.00
List Price: $480,000.00Save 93%
Availability Out of Stock
Quantity

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

H3C LS-12500R-48C6D Ethernet Switch Router Chassis, 48 QSFP28-Portand6 x QSFP-DD Port

Specifications

Catalog Description
DescriptionH3C S12500R-48C6D Ethernet Switch Router Chassis,Supports 48 x QSFP28-Portand6 x QSFP-DD Port
Key Specifications
Switching Capacity (Tbps)14.4/43
Packet Forwarding Rate (Mpps)5,400
Weight (Full Configuration)≤20 kg
Dimensions (H×W×D) mm65.5 x 440 x 660(1.5U)
Ambient temperatureOperating ambient temperature: 0℃~40℃ Storage ambient temperature: -40℃~70℃
Ambient humidityOperating ambient humidity: 5%~95% (non-condensing) Storage ambient humidity: 5%~95% (non-condensing)
Product Specifications
Switching Capacity (Tbps)14.4/43
Packet Forwarding Rate (Mpps)5,400
Redundancy designKey components such as Supervisor Engine Module, Fabric Module, Power Supply, Fan, etc. adopt redundant backup design (excluding S12500R-48Y8C/S12500R-48C6D/S12500R-2L/S12500R-2XL). S12500R-2L/S12500R-2XL key components such as Supervisor Engine Module, Power Supply, Fan, etc. adopt redundant backup design. S12500R-48Y8C/S12500R-48C6D key components such as Power Supply, Fan, etc. adopt redundant backup design.
Weight (Full Configuration)≤20 kg
Dimensions (H×W×D) mm65.5 x 440 x 660(1.5U)
Ambient temperatureOperating ambient temperature: 0℃~40℃ Storage ambient temperature: -40℃~70℃
Ambient humidityOperating ambient humidity: 5%~95% (non-condensing) Storage ambient humidity: 5%~95% (non-condensing)
Environmental protectionWEEE, RoHS
Safety regulationsCE, UL/cUL, FCC-PART15, VCCI, etc.
Ethernet FeaturesSupport 802.1Q, DLDP, LLDP, Static MAC configuration, MAC address learning limit, Port Mirroring and Flow Mirroring, Port Aggregation, Port Isolation, 802.1d (STP)/802.1w (RSTP)/802.1s (MSTP), 802.3ad (Dynamic Link Aggregation), Static Port Aggregation and Cross-board Link Aggregation, IEEE 802.1Q Protocol (VLAN), VLAN quantity 4094, PVST/PVST+, Load Sharing Mode modification based on LAG port.
Traffic MonitoringSupport s Flow/Net Stream, Telemetry, INT (In-band Network Telemetry)*, ERSPAN Enhanced Function/ERSPANv3, Support intelligent network awareness technology based on IP 5-tuple filtering and tracking business flows for real-time detection; precise location of fault points, packet loss, error class faults, ensure business performance, Support iFIT.
WAN FeaturesSupport SR (Segment Routing), SR-TE/SR-TE Traffic Statistics, SR-TE Tunnel BFD Detection, SRv6 Function, 1588v2, SyncE.
IP RoutingSupport Static Routing, RIP, OSPF, IS-IS, BGP4, etc. Support Equal-cost Routing, Policy Routing, Routing Policy, Support IPv4 and IPv6 Dual Protocol Stack, Support IPv6 Static Routing, RIPng, OSPFv3, IS-ISv6, BGP4+, Support VRRPv3, Support Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6, Support IPv4 to IPv6 Transition Technology, including: IPv6 Manual Tunnel, 6to4 Tunnel, ISATAP Tunnel, GRE Tunnel, IPv4 Compatible Auto Configuration Tunnel, Support IPv6 Equal-cost Routing, Support IPv6 Policy Routing, Support IP Packet Fragmentation and Reassembly, All Ports Support Routing Mode, Support Independent IP Address Configuration.
IPv6 FeaturesSupport IPv6 ND (Neighbor Discovery), Support IPv6 VxLAN over IPv4, Support PMTU Discovery (Path MTU Discovery), Support ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, Support IPv6-Portal and IPv6 Tunnel.
Multicast ProtocolSupport IGMP V1/V2/V3, IGMP V1/V2/V3 Snooping, IGMP Proxy, Support IGMP Snooping Fast-leave, IGMP Snooping Group-policy, Support PIM-DM, PIM-SM, PIM-SSM, PIM Snooping, MSDP, etc. Routing Protocols, Support PIM6-DM, PIM6-SM, PIM6-SSM (V7 Version Support), Support MLD V1 Snooping, Support MSDP, Support Multicast Policy and Multicast QoS.
MPLSSupport P/PE Function, Compliant with RFC2547bis Protocol, Support Hierarchical PE, Support Three Cross-domain MPLS VPN Modes (Option1/Option2/Option3), Support L3 MPLS VPN, Support L2 VPN: VLL (Martini, Kompella), Support MCE, Support MPLS OAM, Support VPLS, VLL, Support Multi-role Host, Support VPLS/H-VPLS, Implement Point-to-Multipoint Layer 2 MPLS VPN Function.
ACLSupport Standard and Extended ACL, Support Ingress/Egress ACL, Support VLAN ACL, Support Global ACL.
QoSSupport Diff-Serv QoS, Support Refined Traffic Policing, Support Traffic Shaping, Support Congestion Avoidance, Support Priority Marking Mark/Remark, Support 802.1p, TOS, DSCP, EXP Priority Mapping, Support VOQ, Support SP/WRR/WFQ/SP+WRR/SP+WFQ Queue Scheduling.
SDNSupport ADDC, Support Multi-Controller (EQUAL Mode, Master/Backup Mode).
ProgrammableSupport Multi-table Pipeline, Support OPENFLOW Standard, Support Group table, Support Meter, Support Netconf, Support OVSDB, Support Ansible Automation Configuration.
VXLANSupports VXLAN gateway, supports VXLAN Layer 2 switching, supports VXLAN routing switching, supports BGP EVPN distributed control plane, supports MP-BGP+EVPN VxLAN distributed control plane, supports IPv6 VXLAN over IPv4, supports establishing IPv6 VxLAN tunnels to enable IPv4/IPv6 packet intercommunication between different VxLANs, supports VxLAN, RoCE over VxLAN, BGP EVPN features, supports Emulate-ping VxLAN, VxLAN Tracert, etc.
Lossless NetworkSupports RDMA, RoCE v2 lossless Ethernet features, supports DCBX, PFC, ETS, ECN, QCN, IPCC, AI ECN, iNOF, and other features.
Load BalancingSupports FGLB, supports LBN/LBN Enhanced, supports path navigation, supports per-packet adaptive tuning Spray*, supports Spraylink*.
ReliabilityIndependent hardware Fabric Module design, achieving true separation of control and forwarding. Key components including management routing processing board and power supply support 1+1 redundancy backup. Fabric Module supports N+M redundancy backup. Backplane adopts passive design to avoid single point of failure. Card panel perforated heat dissipation design improves heat dissipation efficiency of system components such as ports, optical modules, chips, etc., improving system operation reliability and service life. All components support hot-swappable function. Supports real-time hot backup of various configuration data on active and standby supervisor engine modules. Supports hot patch function, allowing online patch upgrades. Supports NSR/GR for OSFP/BGP/IS-IS/RSVP, etc. Supports port aggregation, supports link aggregation across boards, supports cross-device link aggregation M-LAG. Supports BFD for VRRP/BGP/IS-IS/OSPF/RSVP/Static Routing, etc., implementing fast failure detection mechanisms for various protocols, minimum detection interval 3.3ms. Supports VRRP. Supports IP FRR, TE FRR, service switchover time less than 50ms. Supports MDC 1 virtual multiple technology. Supports DPSH. Supports ISDF.
SecuritySupports user hierarchical management and password protection. Supports SSHv2, providing a secure encrypted channel for user login. Supports FTP login with controllable IP addresses and password mechanism. Supports standard and extended ACLs to filter packets and prevent network attacks. Supports prevention of ARP, unknown multicast packets, broadcast packets, unknown unicast packets, local network segment routing scan packets, TTL=1/0 packets, protocol packets, and other attack functions. Supports combination binding of IP, MAC, port, VLAN. Supports uRPF technology to prevent network attack behaviors based on source address spoofing. Supports multiple authentication methods such as 802.1x, AAA, Radius, HWTACACS. Supports plaintext and MD5 ciphertext authentication for OSPF, RIPv2, and BGP4 packets. Supports secure network management SNMPv3, SSHv2. Supports suppression of unknown unicast, unknown multicast, broadcast packets. Supports active-standby data backup mechanism. Supports prevention of DOS, ARP, ICMP, and other attacks. Supports IP Source Guard, port isolation. Supports HTTPs, SSL. Supports anti-DDoS, ARP attack, and ICMP attack functions.
Management and MaintenanceSupports Telemetry visualization function. Supports cache micro-burst detection. Supports configuration methods via Console, Telnet, SSH, etc. Supports zero-configuration Auto-config and configuration rollback. Supports RMON (Remote Monitoring). Supports SNMP v1/v2c/v3. Supports network management system. Supports Netconf and Python. Supports system logs and user operation logs. Supports hierarchical alarms. Supports power supply, fan, temperature alarm functions. Supports NTP, SNTP network time protocol. Supports Jumbo Frame. Supports Ping, Tracert, and other debug information output. Supports uploading and downloading files via FTP, TFTP, USB, etc. Supports XModem protocol loading upgrade. Fan module supports temperature, rotation speed, etc. monitoring. Power Supply Module supports temperature, etc. monitoring. Supports Puppet, Ansible automated configuration. Supports ZTP technology, achieving automatic configuration delivery, zero-configuration automatic online.
Compatible with Multiple Cloud PlatformsSupports adaptation and compatibility with third-party cloud platform products and technical capabilities.
Ordering Information
QSFP28-Port
0231A4B3QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC
0231AH0HQSFP-100G-D-AOC-10M-H - 100G QSFP28 to 100G QSFP28 10m Active Optical Cable
0231A4AYQSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable
0231A4B4QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC
0231AH0JQSFP-100G-D-AOC-20M-H - 100G QSFP28 to 100G QSFP28 20m Active Optical Cable
0231A4B0QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable
0231A5HBQSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable
0231A4B2QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC
0231AH0KQSFP-100G-D-AOC-7M-H - 100G QSFP28 to 100G QSFP28 7m Active Optical Cable
0231AFJBQSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC)
0231AFJAQSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC)
0231A4UFQSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC)
0231AM91QSFP-100G-FR1-SM1310 - 100G QSFP28 Optical Module(1310nm,2km,FR1,LC)
0231A5LLQSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC)
0231ABS7QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC)
0231AM90QSFP-100G-DR1-SM1310 - 100G QSFP28 Singlemode Optical Module(1310nm,500m,DR1,LC)
0231A7W9QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC)
0231AH0EQSFP-100G-SR4-MM850-H - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO)
0231A5ULQSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO)
0231AM8YQSFP-100G-LR1-SM1310-DC - 100G QSFP28 Optical Module (for Data Center)-(1310nm,10km,LR1,LC)
0231AJ2S0231AJ2S - H3C S12500R Ethernet Switch Router Chassis
0231AJ2R0231AJ2R - H3C S12500R Ethernet Switch Router Chassis
0231A5H60231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC)
0231A4B1QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO)
0231AL4QQSFP56-200G-D-DAC-1M - 200G QSFP56 1m passive cable
0231AL4XQSFP56-200G-D-DAC-2M - 200G QSFP56 2m passive cable
0231AL4YQSFP56-200G-D-DAC-3M - 200G QSFP56 3m passive cable
0231AJHUQSFP56-200G-FR4-WDM1300 - 200G QSFP56 Single-Mode Optical Module (1300nm, 2km, FR4, SMF/LC)
0231AJHSQSFP56-200G-SR4-MM850 - 200G QSFP56 Multimode Optical Module (850 nm, 100 m OM4, 70 m OM3, SR4, MPO12/UPC)
0231A1LSLSWM1QSTK0 - 40G QSFP+ 1m Cable
0231A1LTLSWM1QSTK1 - 40G QSFP+ 3m Cable
0231A1LULSWM1QSTK2 - 40G QSFP+ 5m Cable
0231A9CTQSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable
0231A3U4QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC
0231A3U5QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC
0231A3U3QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC
0231A1LVLSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable
0231A1LWLSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable
0231A1LXLSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable
0231A2E4QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC)
0231A4Q7QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR)
0231A4PBQSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC)
0231A4UGQSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC)
0231A2NFQSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting)
0231A2KLQSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting)
0231AJ2M0231AJ2M - H3C S12500R Ethernet Switch Router Chassis
0231AJ2N0231AJ2N - H3C S12500R Ethernet Switch Router Chassis
QSFP-DD Port
0231AJ4JQSFPDD-400G-LR8-WDM1300 - 400G QSFP-DD Single-Mode Optical Module (1300nm, 10km, LR8, LC)
0231ALH3QSFPDD-400G-ZR-A - 400G QSFP-DD Singlemode Coherent Optical Module-(120km,Tunable,ZR,LC)
0231ALH4QSFPDD-400G-ZR-B - 400G QSFP-DD Singlemode Coherent Optical Module-(120km,Tunable,ZR,LC)
0231AM4HQSFPDD-400G-2QSFP56-200G-AOC-10m - 400G QSFP56 to 2x200G QSFP56 10m Active Optical Cable
0231AM4KQSFPDD-400G-2QSFP56-200G-AOC-20m - 400G QSFP56 to 2x200G QSFP56 20m Active Optical Cable
0231AMGRQSFPDD-400G-2QSFP56-200G-AOC-30m - 400G QSFPDD to 2x200G QSFP56 30m Active Optical Cable
0231AMGQQSFPDD-400G-2QSFP56-200G-AOC-50m - 400G QSFPDD to 2x200G QSFP56 50m active optical cable
0231AM4JQSFPDD-400G-2QSFP56-200G-AOC-5m - 400G QSFPDD to 2x200G QSFP56 5m active optical cable
0231AM4GQSFPDD-400G-2QSFP56-200G-AOC-7m - 400G QSFPDD to 2x200G QSFP56 7m Active Fiber Cable
0231ANDLQSFPDD-400G-D-AOC-10m - 400G QSFPDD to 400G QSFPDD 10m Multimode Active Fiber Cable
0231ANDMQSFPDD-400G-D-AOC-20m - 400G QSFPDD to 400G QSFPDD 20m multimode active optical cable
0231ADR7QSFPDD-400G-D-CAB-2M - 400G QSFPDD to 400G QSFPDD 2m Passive Cable
0231ANDSQSFPDD-400G-D-AOC-30m - 400G QSFPDD to 400G QSFPDD 30m Multimode Active Optical Cable
0231ANDTQSFPDD-400G-D-AOC-50m - 400G QSFPDD to 400G QSFPDD 50m Multimode Active Optical Cable
0231ANDNQSFPDD-400G-D-AOC-5m - 400G QSFPDD to 400G QSFPDD 5m Multimode Active Optical Cable
0231ANDRQSFPDD-400G-D-AOC-7m - 400G QSFPDD to 400G QSFPDD 7m Multimode Active Optical Cable
0231AESLQSFPDD-400G-FR4-WDM1300 - 400G QSFP-DD Single-Mode Optical Module (1300nm, 2km, FR4, LC)
0231AM93QSFPDD-400G-DR4-SM1310 - 400G QSFPDD Singlemode Optical Module(1310nm,500m,DR4,MPO12/APC,Supports Quad)
0231AE00QSFPDD-400G-SR8-MM850 - 400G QSFPDD Multimode Optical Module (850 nm, 100 m OM4, 70 m OM3, SR8, MPO16/APC, supports 1-to-2 splitting)
0231AM92QSFPDD-400G-SR4-MM850 - 400G QSFPDD Multimode Optical Module(850nm,50m OM4,30m OM3,SR4,MPO12/APC,Supports 1 in 2/1 in 4)
Fan
0231APU6FAN-40B-1-C - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling)
Power Supply
9803A00HPSR1600C-12A-B - 1600WAC System Power Module(Power Supply panel side air outlet)
Services
8814A0TBSV-PS-ASOAS - High-end Switch O&M Assurance Service
Serial Cable
04042967CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port)
0404A1EECAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP)
Product Identity
BrandH3C
SeriesH3C S12500RSeries Fusion Switch Router

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects

Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues

Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch

Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

FAQ

What is the Switching capacity specification for LS-12500R-48C6D?
LS-12500R-48C6D lists Switching capacity as 14.4T. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the 400G port specification for LS-12500R-48C6D?
LS-12500R-48C6D lists 400G port as 6. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (H x W x D) mm specification for LS-12500R-48C6D?
LS-12500R-48C6D lists Dimensions (H x W x D) mm as 65.5 x 440 x 660 (1.5U). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Weight (full configuration) specification for LS-12500R-48C6D?
LS-12500R-48C6D lists Weight (full configuration) as ≤14.7kg. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
