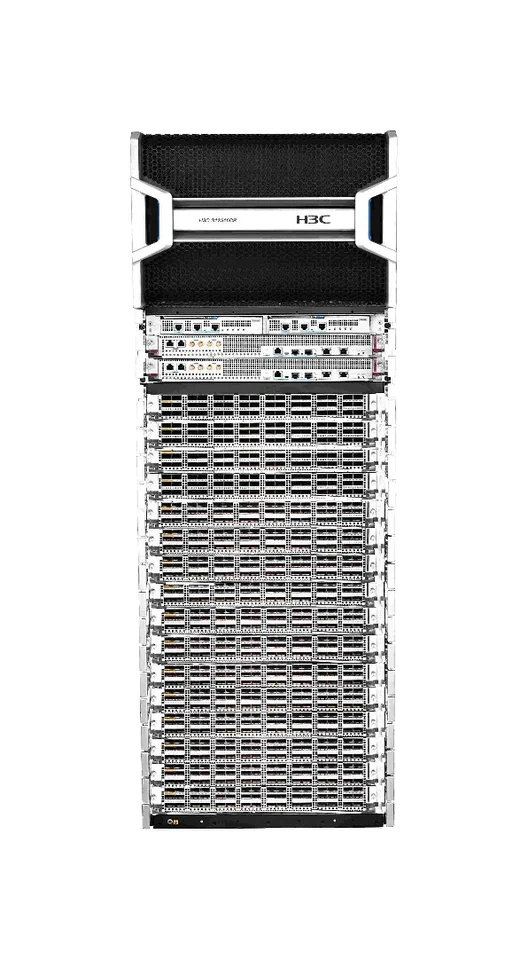

H3C LS-12516CR Ethernet Switch Chassis
Brand H3C
N/AVerified
H3C LS-12516CR
Model (MPN)
0235A2JU
Condition
Factory Sealed
Out of Stock
H3C LS-12516CR Ethernet Switch Chassis. Switching Capacity (Tbps): 3813/11439. Packet Forwarding Rate (Mpps): 921600. Weight (Full Configuration): ≤620kg
Key Specifications
DescriptionH3C S12516CR Ethernet Switch Chassis
Switching Capacity (Tbps)3813/11439
Packet Forwarding Rate (Mpps)921600
Weight (Full Configuration)≤620kg
Dimensions (H×W×D) mm1331 x 442 x 920（30U）
Ambient temperatureOperating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃
Your Price
Best Value
$6,599.95
List Price: $94,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S12516CR Ethernet Switch Chassis |
| Key Specifications | |
| Switching Capacity (Tbps) | 3813/11439 |
| Packet Forwarding Rate (Mpps) | 921600 |
| Weight (Full Configuration) | ≤620kg |
| Dimensions (H×W×D) mm | 1331 x 442 x 920（30U） |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Product Specifications | |
| Switching Capacity (Tbps) | 3813/11439 |
| Packet Forwarding Rate (Mpps) | 921600 |
| Supervisor Engine Module Slot Quantity | 2 |
| Service Module Slot Quantity | 16 |
| Fabric Module Slot Quantity | 9 |
| Redundancy design | Key components such as Supervisor Engine Module, Fabric Module, power supply, and fans adopt redundant backup design. |
| Weight (Full Configuration) | ≤620kg |
| Dimensions (H×W×D) mm | 1331 x 442 x 920（30U） |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | WEEE, RoHS |
| Safety regulations | CE, UL/cUL, FCC-PART15, VCCI, etc. |
| Ethernet Features | Support 802.1Q, DLDP, LLDP, Static MAC configuration, MAC address learning limit, Port Mirroring and Flow Mirroring, Port Aggregation, Port Isolation, 802.1d (STP)/802.1w (RSTP)/802.1s (MSTP), 802.3ad (Dynamic Link Aggregation), Static Port Aggregation and Cross-board Link Aggregation, IEEE 802.1Q Protocol (VLAN), VLAN quantity 4094, PVST/PVST+, Load Sharing Mode modification based on LAG port. |
| Traffic Monitoring | Support s Flow/Net Stream, Telemetry, INT (In-band Network Telemetry)*, ERSPAN Enhanced Function/ERSPANv3, Support intelligent network awareness technology based on IP 5-tuple filtering and tracking business flows for real-time detection; precise location of fault points, packet loss, error class faults, ensure business performance, Support iFIT. |
| WAN Features | Support SR (Segment Routing), SR-TE/SR-TE Traffic Statistics, SR-TE Tunnel BFD Detection, SRv6 Function, 1588v2, SyncE. |
| IP Routing | Support Static Routing, RIP, OSPF, IS-IS, BGP4, etc. Support Equal-cost Routing, Policy Routing, Routing Policy, Support IPv4 and IPv6 Dual Protocol Stack, Support IPv6 Static Routing, RIPng, OSPFv3, IS-ISv6, BGP4+, Support VRRPv3, Support Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6, Support IPv4 to IPv6 Transition Technology, including: IPv6 Manual Tunnel, 6to4 Tunnel, ISATAP Tunnel, GRE Tunnel, IPv4 Compatible Auto Configuration Tunnel, Support IPv6 Equal-cost Routing, Support IPv6 Policy Routing, Support IP Packet Fragmentation and Reassembly, All Ports Support Routing Mode, Support Independent IP Address Configuration. |
| IPv6 Features | Support IPv6 ND (Neighbor Discovery), Support IPv6 VxLAN over IPv4, Support PMTU Discovery (Path MTU Discovery), Support ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, Support IPv6-Portal and IPv6 Tunnel. |
| Multicast Protocol | Support IGMP V1/V2/V3, IGMP V1/V2/V3 Snooping, IGMP Proxy, Support IGMP Snooping Fast-leave, IGMP Snooping Group-policy, Support PIM-DM, PIM-SM, PIM-SSM, PIM Snooping, MSDP, etc. Routing Protocols, Support PIM6-DM, PIM6-SM, PIM6-SSM (V7 Version Support), Support MLD V1 Snooping, Support MSDP, Support Multicast Policy and Multicast QoS. |
| MPLS | Support P/PE Function, Compliant with RFC2547bis Protocol, Support Hierarchical PE, Support Three Cross-domain MPLS VPN Modes (Option1/Option2/Option3), Support L3 MPLS VPN, Support L2 VPN: VLL (Martini, Kompella), Support MCE, Support MPLS OAM, Support VPLS, VLL, Support Multi-role Host, Support VPLS/H-VPLS, Implement Point-to-Multipoint Layer 2 MPLS VPN Function. |
| ACL | Support Standard and Extended ACL, Support Ingress/Egress ACL, Support VLAN ACL, Support Global ACL. |
| QoS | Support Diff-Serv QoS, Support Refined Traffic Policing, Support Traffic Shaping, Support Congestion Avoidance, Support Priority Marking Mark/Remark, Support 802.1p, TOS, DSCP, EXP Priority Mapping, Support VOQ, Support SP/WRR/WFQ/SP+WRR/SP+WFQ Queue Scheduling. |
| SDN | Support ADDC, Support Multi-Controller (EQUAL Mode, Master/Backup Mode). |
| Programmable | Support Multi-table Pipeline, Support OPENFLOW Standard, Support Group table, Support Meter, Support Netconf, Support OVSDB, Support Ansible Automation Configuration. |
| VXLAN | Supports VXLAN gateway, supports VXLAN Layer 2 switching, supports VXLAN routing switching, supports BGP EVPN distributed control plane, supports MP-BGP+EVPN VxLAN distributed control plane, supports IPv6 VXLAN over IPv4, supports establishing IPv6 VxLAN tunnels to enable IPv4/IPv6 packet intercommunication between different VxLANs, supports VxLAN, RoCE over VxLAN, BGP EVPN features, supports Emulate-ping VxLAN, VxLAN Tracert, etc. |
| Lossless Network | Supports RDMA, RoCE v2 lossless Ethernet features, supports DCBX, PFC, ETS, ECN, QCN, IPCC, AI ECN, iNOF, and other features. |
| Load Balancing | Supports FGLB, supports LBN/LBN Enhanced, supports path navigation, supports per-packet adaptive tuning Spray*, supports Spraylink*. |
| Reliability | Independent hardware Fabric Module design, achieving true separation of control and forwarding. Key components including management routing processing board and power supply support 1+1 redundancy backup. Fabric Module supports N+M redundancy backup. Backplane adopts passive design to avoid single point of failure. Card panel perforated heat dissipation design improves heat dissipation efficiency of system components such as ports, optical modules, chips, etc., improving system operation reliability and service life. All components support hot-swappable function. Supports real-time hot backup of various configuration data on active and standby supervisor engine modules. Supports hot patch function, allowing online patch upgrades. Supports NSR/GR for OSFP/BGP/IS-IS/RSVP, etc. Supports port aggregation, supports link aggregation across boards, supports cross-device link aggregation M-LAG. Supports BFD for VRRP/BGP/IS-IS/OSPF/RSVP/Static Routing, etc., implementing fast failure detection mechanisms for various protocols, minimum detection interval 3.3ms. Supports VRRP. Supports IP FRR, TE FRR, service switchover time less than 50ms. Supports MDC 1 virtual multiple technology. Supports DPSH. Supports ISDF. |
| Security | Supports user hierarchical management and password protection. Supports SSHv2, providing a secure encrypted channel for user login. Supports FTP login with controllable IP addresses and password mechanism. Supports standard and extended ACLs to filter packets and prevent network attacks. Supports prevention of ARP, unknown multicast packets, broadcast packets, unknown unicast packets, local network segment routing scan packets, TTL=1/0 packets, protocol packets, and other attack functions. Supports combination binding of IP, MAC, port, VLAN. Supports uRPF technology to prevent network attack behaviors based on source address spoofing. Supports multiple authentication methods such as 802.1x, AAA, Radius, HWTACACS. Supports plaintext and MD5 ciphertext authentication for OSPF, RIPv2, and BGP4 packets. Supports secure network management SNMPv3, SSHv2. Supports suppression of unknown unicast, unknown multicast, broadcast packets. Supports active-standby data backup mechanism. Supports prevention of DOS, ARP, ICMP, and other attacks. Supports IP Source Guard, port isolation. Supports HTTPs, SSL. Supports anti-DDoS, ARP attack, and ICMP attack functions. |
| Management and Maintenance | Supports Telemetry visualization function. Supports cache micro-burst detection. Supports configuration methods via Console, Telnet, SSH, etc. Supports zero-configuration Auto-config and configuration rollback. Supports RMON (Remote Monitoring). Supports SNMP v1/v2c/v3. Supports network management system. Supports Netconf and Python. Supports system logs and user operation logs. Supports hierarchical alarms. Supports power supply, fan, temperature alarm functions. Supports NTP, SNTP network time protocol. Supports Jumbo Frame. Supports Ping, Tracert, and other debug information output. Supports uploading and downloading files via FTP, TFTP, USB, etc. Supports XModem protocol loading upgrade. Fan module supports temperature, rotation speed, etc. monitoring. Power Supply Module supports temperature, etc. monitoring. Supports Puppet, Ansible automated configuration. Supports ZTP technology, achieving automatic configuration delivery, zero-configuration automatic online. |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Ordering Information | |
| Surveillance Module | |
| 0231AE47 | LSXM1CMUR1 - H3C S12500CR Chassis Surveillance Module |
| 0231AJC0 | 0231AJC0 - H3C S12500R Ethernet Switch Router Chassis |
| Mock Panel | |
| 0231A3RK | LSXM1BFP16A - 16-mesh fake pull-tab strip |
| Power Shelf | |
| 0231A5UW | CR-PEM-AC3000 - AC3000WPower Shelf |
| Dedicated Power Supply for Power Shelf | |
| 0231A5V0 | PSR3000B-54AHD - AC 3000W Power Module (supports high voltage DC) |
| Power Shelf Power Supply Cable | |
| 0404A0C2 | CAB-AC Pwr 3C-3m-PDU - PDU Power Supply Cable—3.0 m—3 × 1.5 mm²—Black—(C20 Connector (3P) Straight Male, 250 V, 16 A)—(227 IEC 53 (RVV))—(C19 Connector (3P) Straight Female, 250 V, 16 A)—GB Standard |
| 04043396 | CAB-AC Pwr CHI-3m - Wall-Mount AC power Cable - 3.0 m - 3 × 1.5 mm² - Black - (GB1002 Plug (3P), Angled Male, 250 V, 16 A) - (227 IEC 53 (RVV)) - (C19 Connector (3P), Straight Female, 250 V, 16 A) - National Standard |
| 0404A13W | CAB-AC POWER 3C-5.0m-PDU - PDU Power Supply Cable—5.0 m—3 × 1.5 mm²—Black—(C20 Connector (3P) Straight Male, 250 V, 16 A)—(227 IEC 53 (RVV))—(C19 Connector (3P) Straight Female, 250 V, 16 A)—GB Standard |
| 0404A19G | 0404A19G - AC3000WPower Shelf |
| 0404A0MW | CAB-AC-16A-PDU-3m-Eu - PDU Power Supply Cable - 3.0 m - 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (H05VV-F) - (C19 Connector (3P) Straight Female 250 V 16 A) - European Standard |
| 0404A0GE | CAB-HVDC-16A-PDU-3m-Y - PDU Power Supply Cable - 3.0 m - 3 × 1.5 mm² - Yellow 121C - (C20 Connector (3P) Straight Male 250V 16A) - (227 IEC 53 (RVV)) - (C19 Connector (3P) Straight Female 250V 16A) - Chinese Standard |
| 0404A0GK | CAB-HVDC-250V16A-3m-Y - Wall Plug AC power Cord-3.0m-3*1.5mm^2-Yellow 121C-(GB1002 Plug(3P) Curved Male 250V16A)-(227 IEC 53(RVV))-(C19 Connector(3P) Straight Female 250V16A)-National Standard |
| 0404A0LH | CAB-HVDC-16A-PDU-5m-Y - PDU Power Supply Cable - 5.0 m - 3 × 1.5 mm² - Yellow 121C - (C20 Connector (3P) Straight Male 250V 16A) - (227 IEC 53 (RVV)) - (C19 Connector (3P) Straight Female 250V 16A) - Chinese Standard |
| 0231A5UX | CR-PEM-DC2000 - DC2000WPower Shelf |
| 0231A5V1 | PSR2000B-54D - DC2000WPower Module |
| 0404A0TN | CAB-DC PWR-25m-2*JG2 - Single Cable - External DC power Cable - 25m - (2*JG2(22-5-90)) - (RVVZ-0.6 kV/1.0 kV-25 mm² black + RVVZ-0.6 kV/1.0 kV-25 mm² blue)-(2*T(25-16) green + 2*T(25-16) green! + 2*OT(25-6-0)!) |
| 0404A0TP | CAB-DC PWR-35m-2*JG2 - Single cable—external DC power line—35 m—(2× JG2 (22.2-5-90))— (RVVZ-0.6 kV/1.0 kV-35 mm² black + RVVZ-0.6 kV/1.0 kV-35 mm² blue)-(2*T(33-18) beige + 2*T(33-18) beige! + 2*OT(35-6-0)!) |
| 0404A0TY | CAB-DC PWR-5m-2*JG2 - Single-strand cable—external DC power line—5 m—(2*JG2(25-5-90))—(4UL10455 black + 4UL10455 blue)—(2*T(25-16) brown + 2*T(25-16) brown! + 2OT(25-6-0)!) |
| 0231A5UY | CR-PEM-HVDC3000 - High voltage DC 3000W power supply box |
| 0404A0RL | CAB-HVDC Pwr-3m-336V - 336V High-Voltage DC power Cable - 3 m - 3 × 1.5 mm² - Black - (PW3C-16A 450V) - (227 IEC 53 (RVV) 3 × 1.5 mm² Black) - (3 × T1.5 mm² - 8 Red + 3 × OT (2.5-6-0)!) |
| 0404A0RP | CAB-PDU Pwr-3m-PW3C450V - PDU Power Supply Cable - 3.0 m - 3×1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (227 IEC 53 (RVV)) - (HVDCB Connector (3P) Straight Female 250 V 16 A) - National Standard |
| 0404A0RQ | CAB-AC-Pwr-3m-PW3C450V - Wall-Mounted AC power Cable - 3.0 m - 3 × 1.5 mm² - Black - (GB1002 Plug (3P), Angled Male, 250 V, 16 A) - (227 IEC 53 (RVV)) - (HVDCB Connector (3P), Straight Female, 250 V, 16 A) - National Standard |
| Services | |
| 8814A0TB | SV-PS-ASOAS - High-end Switch O&M Assurance Service |
| Rack Rail | |
| 0231A4EK | LSXM1BSR - 1U Adjustable Rack Rail—630 mm to 900 mm |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S12500RSeries Fusion Switch Router |
