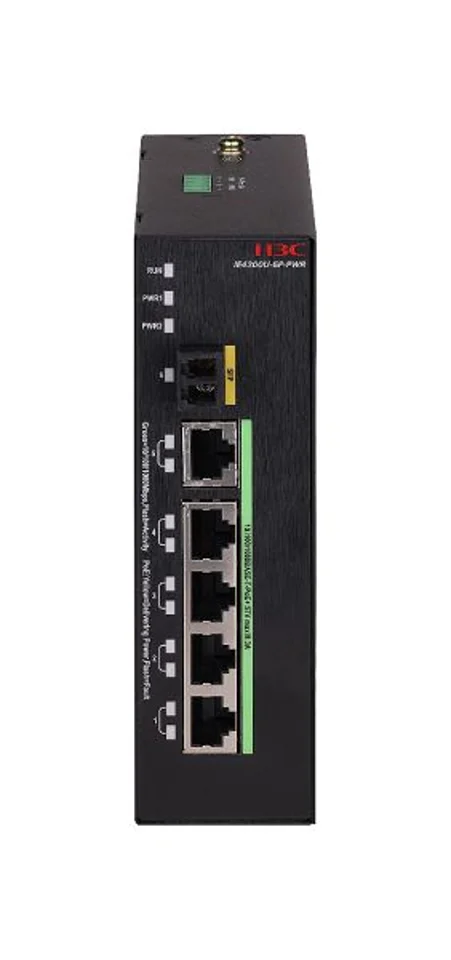

H3C LS-IE4300U-6P-PWR-BS IE4300U-6P-PWR L2 Industrial Ethernet Switch, supports 5 10/100/1000 BASE-T PoE+ Ethernet ports, supports 1 fiber port (built-in 20KM 1000M LC (1310nm) single-mode dual-core optical module), 54–57 VDC, redundant input
Brand H3C
N/AVerified
H3C LS-IE4300U-6P-PWR-BS
Model (MPN)
9801A6DM
Condition
Factory Sealed
Out of Stock
H3C LS-IE4300U-6P-PWR-BS IE4300U-6P-PWR L2 Industrial Ethernet Switch, supports 5 10/100/1000 BASE-T PoE+ Ethernet ports, supports 1 fiber port (built-in 20KM 1000M LC (1310nm) single-mode dual-core optical module), 54–57 VDC, redundant input. Service Port: 5 10/100/1000BASE-T Ethernet ports, 1 fiber port (with built-in 20KM 1000M LC (1310nm) single-mode dual-core industrial-grade optical module). Weight: ≤0.55kg. St
Key Specifications
DescriptionH3C IE4300U-6P-PWR L2 Industrial Ethernet Switch, supports 5 10/100/1000 BASE-T PoE+ Ethernet ports, supports 1 fiber port (built-in 20KM 1000M LC (1310nm) single-mode dual-core optical module), 54–57 VDC, redundant input
Weight≤0.55kg
Static Power Consumption≤1.2W
Full-load Power Consumption≤2.9W
VLANSupports Port-based VLAN
Jumbo framesSupport for 10240 jumbo frames
Your Price
Best Value
$72.80
List Price: $1,040.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4300U-6P-PWR L2 Industrial Ethernet Switch, supports 5 10/100/1000 BASE-T PoE+ Ethernet ports, supports 1 fiber port (built-in 20KM 1000M LC (1310nm) single-mode dual-core optical module), 54–57 VDC, redundant input |
| Key Specifications | |
| Weight | ≤0.55kg |
| Static Power Consumption | ≤1.2W |
| Full-load Power Consumption | ≤2.9W |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| DHCP | Supports DHCP Client |
| Product Specifications | |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| DHCP | Supports DHCP Client |
| Ring Detection | Support for Basic Ring Detection Function |
| Security Features | Supports broadcast storm suppression, unknown unicast suppression, multicast storm suppression |
| Management and Maintenance | Supports Port Mirroring |
| Weight | ≤0.55kg |
| Service Port | 5 10/100/1000BASE-T Ethernet ports, 1 fiber port (with built-in 20KM 1000M LC (1310nm) single-mode dual-core industrial-grade optical module) |
| IPProtection Rating | IP41 |
| Power Input | Dual backup redundant inputs 48V~57VDC |
| Static Power Consumption | ≤1.2W |
| Full-load Power Consumption | ≤2.9W |
| Ordering Information | |
| Power Module | |
| 9802A04X | DG-U120S-55 - 120W High Performance Power Supply Adapter(Input Voltage Range: 90-264VAC/100-370VDC, Output Voltage Range:+55V) |
| 0213A07K | DG-240-5501 - H3C 200W Industrial Switch Card-Rail PoEPower Module(Input Voltage Range:90VAC-264VAC,Output Voltage 55VDC) |
| 9802A033 | DD520M52-1P1 - H3C 52WDC Boost Power Supply Adapter(Input Voltage Range:10-16VDC,Output Voltage:52VDC) |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| 0404A2BK | CAB-DC-2.0m-51036 - External DC power cable-2.0m-(EDGKM(2P) straight male 300V/8A green)-(SJT)-(EN(18-6mm) yellow) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4300U Series Rack Rail Type Weak Management Industrial Ethernet Switch |
