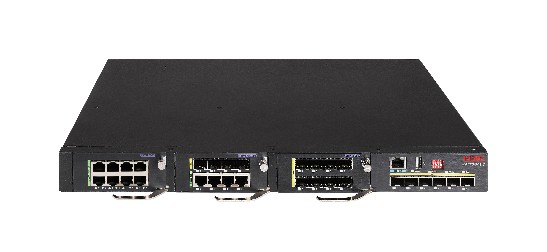

H3C LS-IE4520-30S-C L3 Industrial Ethernet Switch Chassis, 6 1G/10GBASE-X SFP+Port, 3 Slots, (AC)
Brand H3C
N/AVerified
H3C LS-IE4520-30S-C
Model (MPN)
9801A2M5
Condition
Factory Sealed
Out of Stock
H3C LS-IE4520-30S-C L3 Industrial Ethernet Switch Chassis, 6 1G/10GBASE-X SFP+Port, 3 Slots, (AC). Switching Capacity: 756Gbps/7.56Tbps. Packet Forwarding Rate: 222Mpps. Power Interface: AC: IEC 60320 C13; DC: Phoenix terminal block
Key Specifications
DescriptionH3C IE4520-30S-C L3 Industrial Ethernet Switch Chassis,Supports 6 x1G/10GBASE-X SFP+Port,Supports 3 x Slots,(AC)
Switching Capacity756Gbps/7.56Tbps
Packet Forwarding Rate222Mpps
Power InterfaceAC: IEC 60320 C13; DC: Phoenix terminal block
USB interface1 x USBInterface
Dimensions(W×D×H) (in mm) 440×360×43.61U Rack
Your Price
Best Value
$840.00
List Price: $12,000.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C IE4520-30S-C L3 Industrial Ethernet Switch Chassis,Supports 6 x1G/10GBASE-X SFP+Port,Supports 3 x Slots,(AC) |
| Key Specifications | |
| Switching Capacity | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 222Mpps |
| Power Interface | AC: IEC 60320 C13; DC: Phoenix terminal block |
| USB interface | 1 x USBInterface |
| Dimensions | (W×D×H) (in mm) 440×360×43.61U Rack |
| Weight | ≤5.5kg |
| Product Specifications | |
| Switching Capacity | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 222Mpps |
| Dimensions | (W×D×H) (in mm) 440×360×43.61U Rack |
| Weight | ≤5.5kg |
| Power Interface | AC: IEC 60320 C13; DC: Phoenix terminal block |
| USB interface | 1 x USBInterface |
| Configuration Port | 1 x RJ45 console |
| DIP Switch | Four-way DIP Switch for quick configuration |
| DIDO | 1 DI 1 DO |
| IPProtection Rating | IP40 |
| Fixed Service Ports | 6 x1G/10G BASE-X SFP+Port |
| extended slot | 3 x Expansion Slot |
| Extended Services Plug-in Card | LS5M1IEGP8: 8 100/1000BASE-X SFP ports (common to all three slots) LS5M1IEGT4GP4: 4 10/100/1000BASE-T electrical ports,4 100/1000BASE-X SFP ports (common to all three slots) LS5M1IEGT8: 8 10/100/LS5M1IEGT8: 8 x 10/100/1000BASE-T electrical ports (common to all three slots) LS5M1IEXG4: 4 x 1G/10G BASE-X SFP+ ports (only the third slot is suitable for this card); |
| Extended Function Plug-in Card | Not supported |
| Power Input | Dual Backup Redundant Power Input AC220V Input Power Range (100~240VAC, 50/60HZ) Maximum Range (85~264VAC) or DC220V Input Power Range (192~288VDC) |
| Static Power Consumption | Single AC: ≤ 15.0W Dual AC: ≤ 16.0W |
| Full-load Power Consumption | Single AC: ≤ 46.0W Dual AC: ≤ 48.0W |
| Cooling method | Fanless, natural cooling |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~70℃ |
| Storage Temperature | -40℃～85℃ |
| Forwarding Mode | store-and-forward mode |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports Jumbo Frame |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports 4K VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| Industrial protocols | Supports Profinet, Ethernet/IP, Modbus and other ubiquitous industrial protocols throughput. |
| DHCP | DHCP Client |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports Static Routing |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| MFF | Supports MFF (MAC-Forced Forwarding) function |
| Mirroring | Supports Flow Mirroring |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port numbers, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XModem/FTP/TFTP for loading upgrades |
| Green Energy Saving | Port auto Power down function |
| Ordering Information | |
| Expansion Module | |
| 9801A47M | LS5M1IEXG4 - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| SFP+ 10G Port | |
| 0231ALKD | SFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC) |
| 0231ALKB | SFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45) |
| 0231AK6J | 0231AK6J - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,20km,LC) |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,40km,LC) |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,20km,LC) |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,40km,LC) |
| 0231AK6G | 0231AK6G - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231ALKF | SFP-XG-LH40-SM1550-I - SFP+ 10G Optical Module-(-40°C~85°C,1550nm,40km, ER,SM,LC) |
| 0231ALKJ | SFP-XG-SX-MM850-I - SFP+ 10G Optical Module-(-40°C~85°C,850nm,300m, SR,MM,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| 0231AK6L | 0231AK6L - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231AK6H | 0231AK6H - H3C IE-Module-4X 4-Port10GEthernetoptical interface Module |
| 9801A2MV | LS5M1IEGT4GP4 - H3C IE-Module-4G4P 4electrical port+4optical port Gigabit Interface Module |
| SFP Gigabit Port | |
| 0231ALKL | SFP-FE-LH40-SM1310-I - SFP 100M/155M Optical Module-(-40°C~85°C,1310nm,40km,EX,SM,LC) |
| 0231A890 | SFP-FE-BX15-U-SM1310 - SFPModule,-40~85℃,1310nm,15km,LC |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231AK6J | 0231AK6J - Data Communications - H3C IE-Module-4G4P-LS5M1IEGT4GP4 - 4 Ethernet Ports + 4 Fiber Ports Gigabit Interface Module (RJ45 + SFP) - Domestic Version |
| 0231AK6K | 0231AK6K - Data Communications - H3C IE-Module-4G4P-LS5M1IEGT4GP4 - 4 Ethernet Ports + 4 Fiber Ports Gigabit Interface Module (RJ45 + SFP) - Domestic Version |
| 0231AK6G | 0231AK6G - Data Communications - H3C IE-Module-4G4P-LS5M1IEGT4GP4 - 4 Ethernet Ports + 4 Fiber Ports Gigabit Interface Module (RJ45 + SFP) - Domestic Version |
| 0231AK6F | 0231AK6F - Data Communications - H3C IE-Module-4G4P-LS5M1IEGT4GP4 - 4 Ethernet Ports + 4 Fiber Ports Gigabit Interface Module (RJ45 + SFP) - Domestic Version |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 9801A2MW | LS5M1IEGT8 - H3C IE-Module-8G 8-Port Gigabit Ethernetelectrical interface Module |
| 9801A2MU | LS5M1IEGP8 - H3C IE-Module-8P 8-Port Gigabit Ethernetoptical interface Module |
| 0231AK6J | 0231AK6J - Datacom-H3C IE-Module-8P-LS5M1IEGP8-8-Port Gigabitoptical port Module (SFP)-Domestic Edition |
| 0231AK6K | 0231AK6K - Datacom-H3C IE-Module-8P-LS5M1IEGP8-8-Port Gigabitoptical port Module (SFP)-Domestic Edition |
| 0231AK6G | 0231AK6G - Datacom-H3C IE-Module-8P-LS5M1IEGP8-8-Port Gigabitoptical port Module (SFP)-Domestic Edition |
| 0231AK6F | 0231AK6F - Datacom-H3C IE-Module-8P-LS5M1IEGP8-8-Port Gigabitoptical port Module (SFP)-Domestic Edition |
| SFP/SFP+10GOptical Port | |
| 0231AK6J | 0231AK6J - H3C IE4520 Series Modular Industrial Switch |
| 0231AK6K | 0231AK6K - H3C IE4520 Series Modular Industrial Switch |
| 0231AK6G | 0231AK6G - H3C IE4520 Series Modular Industrial Switch |
| 0231AK6F | 0231AK6F - H3C IE4520 Series Modular Industrial Switch |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231AK6M | 0231AK6M - H3C IE4520 Series Modular Industrial Switch |
| 0231AK6L | 0231AK6L - H3C IE4520 Series Modular Industrial Switch |
| 0231AK6H | 0231AK6H - H3C IE4520 Series Modular Industrial Switch |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4520Series Modularized Industrial Ethernet Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-IE4520-30S-C?
LS-IE4520-30S-C lists Switching Capacity as 756Gbps/7.56Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-IE4520-30S-C?
LS-IE4520-30S-C lists Packet Forwarding Rate as 222Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Configuration Port specification for LS-IE4520-30S-C?
LS-IE4520-30S-C lists Configuration Port as 1 x RJ45 console. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions specification for LS-IE4520-30S-C?
LS-IE4520-30S-C lists Dimensions as (W×D×H) (in mm) 440×360×43.61U Rack. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
