Product Overview

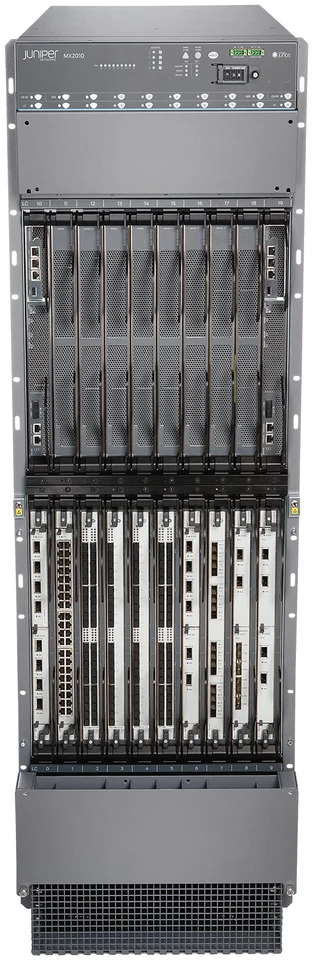

The Juniper MX2010-PREMIUM-AC is a high-performance network component designed for the MX2010 series.
Brand Juniper
N/AVerified
MX2010-PREMIUM-AC
Model (MPN)
MX2010-PREMIUM-AC
Condition
Factory Sealed
Out of Stock
Volume & Framework Pricing
B2B Only| Quantity | Unit Price | Est. Savings |
|---|---|---|
| 1 Unit | $272.20 | - |
| 2 - 9 Units | Request Quote | 5 - 10% |
| 10+ / Project | Framework Match | Tier-1 Access |
Global Framework Support AvailableGet Global Discount
Key Specifications
Full Product NameMX2010 Universal Routing Platform
OS SupportedJunos OS
Fixed/Modular Chassis?Modular
Form Factor34 U
Chassis Height59.5 in / 151.13 cm
Chassis Width19 in / 48.26 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Related Products
Overview
Specifications
| MX2010-BASE-AC — Overview | |
|---|---|
| Full Product Name | MX2010 Universal Routing Platform |
| OS Supported | Junos OS |
| MX2010-BASE-AC — Chassis | |
| Fixed/Modular Chassis? | Modular |
| Form Factor | 34 U |
| Chassis Height | 59.5 in / 151.13 cm |
| Chassis Width | 19 in / 48.26 cm |
| Chassis Depth | 36 in / 91.95 cm |
| Chassis Depth (With FRUs) | 40.15 in / 102 cm |
| Chassis Weight (Spare) | 324 lb / 146.96 kg |
| Chassis Weight (Fully Loaded With All Components) | 985 lb / 446.71 kg |
| Chassis Model Number | CHAS-BP-MX2010 |
| Cable Management System Model Number | MX2000-CBL-TOP-S, MX2000-CBL-MID-S, MX2000-CBL-BTM-S,MX2K-HV-CBL-MGR, MX2000-CBL-BTM-XT-S |
| MX2010-BASE-AC — Cooling System | |
| Airflow Direction | Front-to-back |
| Fan Tray Model Number | MX2000-FANTRAY, MX2K-FANTRAY |
| Fan Tray Count | 4 |
| Fan Tray Hot-Removable And Hot-Insertable? | Y |
| MX2010-BASE-AC — Environmental Specifications | |
| Operating Altitude | 10000 ft / 3048 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 40.15 in / 102 cm |
| MX2010-BASE-AC — Power System | |
| PSU Count | 9 |
| PSU Airflow Direction | Front-to-back |
| PDM Model Number | MX2000-PDM-AC-DELTA, MX2000-PDM-AC-WYE, MX2K-PDM-AC-1PH, MX2K-PDM-OP-AC, MX2K-PDM-HV |
| PDM Count | 2 |
| PDM Redundancy | 1+1 |
| PDM Hot-Removable And Hot-Insertable? | Y |
| AC PSU Model Number | MX2000-PSM-AC |
| AC PSU Average Heat Dissipation | 129280 BTU/h |
| HVAC PSU Model Number | MX2K-PSM-HV |
| HVAC PSU Average Heat Dissipation | 129280 BTU/h |
| Grounding Cable Temperature Rating | 75° C / 167° F |
| Grounding Cable Wire Gauge | 4 AWG |
| MX2010-BASE-AC — Routing/Switching Hardware | |
| RE Model Number | REMX2K-X8-64G, REMX2K-X8-128G |
| RE Count | 1 |
| SFB Model Number | MX2000-SFB, MX2000-SFB2, MX2000-SFB3 |
| SFB Count | 7 |
| Line Card Slots | 10 |
| MX2010-BASE-DC — Overview | |
| Full Product Name | MX2010 Universal Routing Platform |
| OS Supported | Junos OS |
| MX2010-BASE-DC — Chassis | |
| Fixed/Modular Chassis? | Modular |
| Form Factor | 34 U |
| Chassis Height | 59.5 in / 151.13 cm |
| Chassis Width | 19 in / 48.26 cm |
| Chassis Depth | 36 in / 91.95 cm |
| Chassis Depth (With FRUs) | 38.14 in / 96.9 cm |
| Chassis Weight (Spare) | 324 lb / 146.96 kg |
| Chassis Weight (Fully Loaded With All Components) | 985 lb / 446.71 kg |
| Chassis Model Number | CHAS-BP-MX2010 |
| Cable Management System Model Number | MX2000-CBL-TOP-S, MX2000-CBL-MID-S, MX2000-CBL-BTM-S,MX2K-HV-CBL-MGR, MX2000-CBL-BTM-XT-S |
| MX2010-BASE-DC — Cooling System | |
| Airflow Direction | Front-to-back |
| Fan Tray Model Number | MX2000-FANTRAY, MX2K-FANTRAY |
| Fan Tray Count | 4 |
| Fan Tray Hot-Removable And Hot-Insertable? | Y |
| MX2010-BASE-DC — Environmental Specifications | |
| Operating Altitude | 10000 ft / 3048 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 40.15 in / 102 cm |
| MX2010-BASE-DC — Power System | |
| PSU Count | 9 |
| PSU Airflow Direction | Front-to-back |
| PDM Model Number | MX2000-PDM-DC, MX2K-PDM-DC240V, MX2K-PDM-OP-DC, MX2K-PDM-HV |
| PDM Count | 2 |
| PDM Redundancy | 1+1 |
| PDM Hot-Removable And Hot-Insertable? | Y |
| DC PSU Model Number | MX2000-PSM-DC, MX2K-PSM-DC240V |
| DC PSU Average Heat Dissipation | 129280 BTU/h |
| HVDC PSU Model Number | MX2K-PSM-HV |
| HVDC PSU Average Heat Dissipation | 129280 BTU/h |
| Grounding Cable Temperature Rating | 75° C / 167° F |
| Grounding Cable Wire Gauge | 4 AWG |
| MX2010-BASE-DC — Routing/Switching Hardware | |
| RE Model Number | REMX2K-X8-64G, REMX2K-X8-128G |
| RE Count | 1 |
| SFB Model Number | MX2000-SFB, MX2000-SFB2, MX2000-SFB3 |
| SFB Count | 7 |
| Line Card Slots | 10 |
| MX2010-PREMIUM-AC — Overview | |
| Full Product Name | MX2010 Universal Routing Platform |
| OS Supported | Junos OS |
| MX2010-PREMIUM-AC — Chassis | |
| Fixed/Modular Chassis? | Modular |
| Form Factor | 34 U |
| Chassis Height | 59.5 in / 151.13 cm |
| Chassis Width | 19 in / 48.26 cm |
| Chassis Depth | 36 in / 91.95 cm |
| Chassis Depth (With FRUs) | 40.15 in / 102 cm |
| Chassis Weight (Spare) | 324 lb / 146.96 kg |
| Chassis Weight (Fully Loaded With All Components) | 985 lb / 446.71 kg |
| Chassis Model Number | CHAS-BP-MX2010 |
| Cable Management System Model Number | MX2000-CBL-TOP-S, MX2000-CBL-MID-S, MX2000-CBL-BTM-S,MX2K-HV-CBL-MGR, MX2000-CBL-BTM-XT-S |
| MX2010-PREMIUM-AC — Cooling System | |
| Airflow Direction | Front-to-back |
| Fan Tray Model Number | MX2000-FANTRAY, MX2K-FANTRAY |
| Fan Tray Count | 4 |
| Fan Tray Hot-Removable And Hot-Insertable? | Y |
| MX2010-PREMIUM-AC — Environmental Specifications | |
| Operating Altitude | 10000 ft / 3048 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 40.15 in / 102 cm |
| MX2010-PREMIUM-AC — Power System | |
| PSU Count | 9 |
| PSU Airflow Direction | Front-to-back |
| PDM Model Number | MX2000-PDM-AC-DELTA, MX2000-PDM-AC-WYE, MX2K-PDM-AC-1PH, MX2K-PDM-OP-AC, MX2K-PDM-HV |
| PDM Count | 2 |
| PDM Redundancy | 1+1 |
| PDM Hot-Removable And Hot-Insertable? | Y |
| AC PSU Model Number | MX2000-PSM-AC |
| AC PSU Average Heat Dissipation | 129280 BTU/h |
| HVAC PSU Model Number | MX2K-PSM-HV |
| HVAC PSU Average Heat Dissipation | 129280 BTU/h |
| Grounding Cable Temperature Rating | 75° C / 167° F |
| Grounding Cable Wire Gauge | 4 AWG |
| MX2010-PREMIUM-AC — Routing/Switching Hardware | |
| RE Model Number | REMX2K-X8-64G, REMX2K-X8-128G |
| RE Count | 2 |
| SFB Model Number | MX2000-SFB, MX2000-SFB2, MX2000-SFB3 |
| SFB Count | 8 |
| Line Card Slots | 10 |
| MX2010-PREMIUM-DC — Overview | |
| Full Product Name | MX2010 Universal Routing Platform |
| OS Supported | Junos OS |
| MX2010-PREMIUM-DC — Chassis | |
| Fixed/Modular Chassis? | Modular |
| Form Factor | 34 U |
| Chassis Height | 59.5 in / 151.13 cm |
| Chassis Width | 19 in / 48.26 cm |
| Chassis Depth | 36 in / 91.95 cm |
| Chassis Depth (With FRUs) | 38.14 in / 96.9 cm |
| Chassis Weight (Spare) | 324 lb / 146.96 kg |
| Chassis Weight (Fully Loaded With All Components) | 985 lb / 446.71 kg |
| Chassis Model Number | CHAS-BP-MX2010 |
| Cable Management System Model Number | MX2000-CBL-TOP-S, MX2000-CBL-MID-S, MX2000-CBL-BTM-S, MX2000-DC-CBL-MGR-S,MX2K-HV-CBL-MGR, MX2000-CBL-BTM-XT-S, MX2020-DC-CBL-MGR-XT-S |
| MX2010-PREMIUM-DC — Cooling System | |
| Airflow Direction | Front-to-back |
| Fan Tray Model Number | MX2000-FANTRAY, MX2K-FANTRAY |
| Fan Tray Count | 4 |
| Fan Tray Hot-Removable And Hot-Insertable? | Y |
| MX2010-PREMIUM-DC — Environmental Specifications | |
| Operating Altitude | 10000 ft / 3048 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 40.15 in / 102 cm |
| MX2010-PREMIUM-DC — Power System | |
| PSU Count | 9 |
| PSU Airflow Direction | Front-to-back |
| PDM Model Number | MX2000-PDM-DC, MX2K-PDM-DC240V, MX2K-PDM-OP-DC, MX2K-PDM-HV |
| PDM Count | 2 |
| PDM Redundancy | 1+1 |
| PDM Hot-Removable And Hot-Insertable? | Y |
| DC PSU Model Number | MX2000-PSM-DC, MX2K-PSM-DC240V |
| DC PSU Average Heat Dissipation | 129280 BTU/h |
| HVDC PSU Model Number | MX2K-PSM-HV |
| HVDC PSU Average Heat Dissipation | 129280 BTU/h |
| Grounding Cable Temperature Rating | 75° C / 167° F |
| Grounding Cable Wire Gauge | 4 AWG |
| MX2010-PREMIUM-DC — Routing/Switching Hardware | |
| RE Model Number | REMX2K-X8-64G, REMX2K-X8-128G |
| RE Count | 2 |
| SFB Model Number | MX2000-SFB, MX2000-SFB2, MX2000-SFB3 |
| SFB Count | 8 |
| Line Card Slots | 10 |
| MX2010-PREMIUM2-AC — Overview | |
| Full Product Name | MX2010 Universal Routing Platform |
| OS Supported | Junos OS |
| MX2010-PREMIUM2-AC — Chassis | |
| Fixed/Modular Chassis? | Modular |
| Form Factor | 34 U |
| Chassis Height | 59.5 in / 151.13 cm |
| Chassis Width | 19 in / 48.26 cm |
| Chassis Depth | 36 in / 91.95 cm |
| Chassis Depth (With FRUs) | 40.15 in / 102 cm |
| Chassis Weight (Spare) | 324 lb / 146.96 kg |
| Chassis Weight (Fully Loaded With All Components) | 985 lb / 446.71 kg |
| Chassis Model Number | MX2010-PREMIUM2-AC |
| Cable Management System Model Number | MX2000-CBL-TOP-S, MX2000-CBL-MID-S, MX2000-CBL-BTM-S, MX2000-DC-CBL-MGR-S,MX2K-HV-CBL-MGR, MX2000-CBL-BTM-XT-S, MX2020-DC-CBL-MGR-XT-S |
| MX2010-PREMIUM2-AC — Cooling System | |
| Airflow Direction | Front-to-back |
| Fan Tray Model Number | MX2000-FANTRAY, MX2K-FANTRAY |
| Fan Tray Count | 4 |
| Fan Tray Hot-Removable And Hot-Insertable? | Y |
| MX2010-PREMIUM2-AC — Environmental Specifications | |
| Operating Altitude | 10000 ft / 3048 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 40.15 in / 102 cm |
| MX2010-PREMIUM2-AC — Power System | |
| PSU Count | 9 |
| PSU Airflow Direction | Front-to-back |
| PDM Model Number | MX2000-PDM-AC-DELTA, MX2000-PDM-AC-WYE, MX2K-PDM-AC-1PH, MX2K-PDM-OP-AC, MX2K-PDM-HV |
| PDM Count | 2 |
| PDM Redundancy | 1+1 |
| PDM Hot-Removable And Hot-Insertable? | Y |
| AC PSU Model Number | MX2000-PSM-AC |
| AC PSU Average Heat Dissipation | 129280 BTU/h |
| HVAC PSU Model Number | MX2K-PSM-HV |
| HVAC PSU Average Heat Dissipation | 129280 BTU/h |
| Grounding Cable Temperature Rating | 75° C / 167° F |
| Grounding Cable Wire Gauge | 4 AWG |
| MX2010-PREMIUM2-AC — Routing/Switching Hardware | |
| RE Model Number | REMX2K-X8-64G, REMX2K-X8-128G |
| RE Count | 2 |
| SFB Model Number | MX2000-SFB, MX2000-SFB2, MX2000-SFB3 |
| SFB Count | 8 |
| MX2010-PREMIUM2-DC — Overview | |
| Full Product Name | MX2010 Universal Routing Platform |
| OS Supported | Junos OS |
| MX2010-PREMIUM2-DC — Chassis | |
| Fixed/Modular Chassis? | Modular |
| Form Factor | 34 U |
| Chassis Height | 59.5 in / 151.13 cm |
| Chassis Width | 19 in / 48.26 cm |
| Chassis Depth | 36 in / 91.95 cm |
| Chassis Depth (With FRUs) | 38.14 in / 96.9 cm |
| Chassis Weight (Spare) | 324 lb / 146.96 kg |
| Chassis Weight (Fully Loaded With All Components) | 985 lb / 446.71 kg |
| Chassis Model Number | MX2010-PREMIUM2-DC |
| Cable Management System Model Number | MX2000-CBL-TOP-S, MX2000-CBL-MID-S, MX2000-CBL-BTM-S, MX2000-DC-CBL-MGR-S,MX2K-HV-CBL-MGR, MX2000-CBL-BTM-XT-S, MX2020-DC-CBL-MGR-XT-S |
| MX2010-PREMIUM2-DC — Cooling System | |
| Airflow Direction | Front-to-back |
| Fan Tray Model Number | MX2000-FANTRAY, MX2K-FANTRAY |
| Fan Tray Count | 4 |
| Fan Tray Hot-Removable And Hot-Insertable? | Y |
| MX2010-PREMIUM2-DC — Environmental Specifications | |
| Operating Altitude | 10000 ft / 3048 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 40.15 in / 102 cm |
| MX2010-PREMIUM2-DC — Power System | |
| PSU Count | 9 |
| PSU Airflow Direction | Front-to-back |
| PDM Model Number | MX2000-PDM-DC, MX2K-PDM-DC240V, MX2K-PDM-OP-DC, MX2K-PDM-HV |
| PDM Count | 2 |
| PDM Redundancy | 1+1 |
| PDM Hot-Removable And Hot-Insertable? | Y |
| DC PSU Model Number | MX2000-PSM-DC, MX2K-PSM-DC240V |
| DC PSU Average Heat Dissipation | 129280 BTU/h |
| HVDC PSU Model Number | MX2K-PSM-HV |
| HVDC PSU Average Heat Dissipation | 129280 BTU/h |
| Grounding Cable Temperature Rating | 75° C / 167° F |
| Grounding Cable Wire Gauge | 4 AWG |
| MX2010-PREMIUM2-DC — Routing/Switching Hardware | |
| RE Model Number | REMX2K-X8-64G, REMX2K-X8-128G |
| RE Count | 2 |
| SFB Model Number | MX2000-SFB, MX2000-SFB2, MX2000-SFB3 |
| SFB Count | 8 |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
