Product Overview

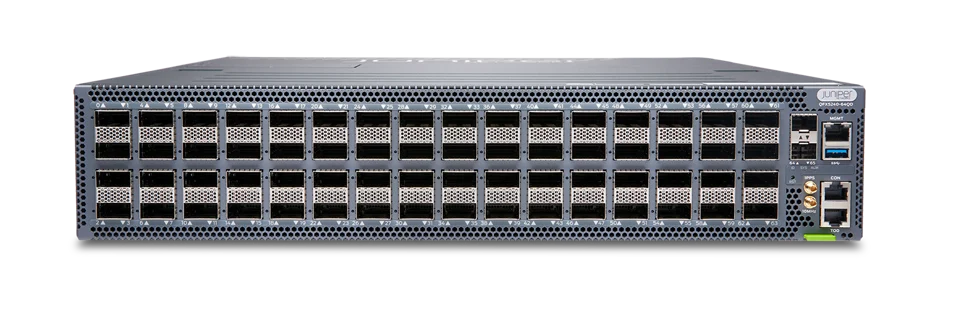

The Juniper QFX5241-64QD-DO is a high-performance 2U switch from the QFX5241-64QD Series, optimized for end-of-row, leaf, or spine roles in IP fabric architectures, particularly as shallow buffer platforms for spine in data centers. It features 64 QSFP-DD ports supporting up to 800 Gbps, delivering 51.2 Tbps throughput with high port density to reduce space and power costs. Equipped with DC PSUs and airflow out (AFO) cooling.
Architecture & Performance
Powered by high-radix class TH5 BCM78900 chipsets with 64 Peregrine SerDes cores and an Intel 4-core 2.2-GHz Ice Lake D processor with 32 GB DRAM. Runs Junos OS Evolved on two internal 480-GB NVMe SSDs. Supports advanced telemetry (ECN/PFC counters), load-balancing for complex flows, and automation via Apstra. Data transmission capability: 800 Gbps per port.
Ports and Connectivity
- 64 QSFP-DD ports (ports 0–63, up to 800 Gbps)
- 2 SFP28 ports (ports 64 and 65, up to 10 Gbps)
- 1 USB 3.0 port
- 1 RJ-45 console port
- 1 management (MGMT) port
Chassis and Physical Specifications
2U rack form factor. Dimensions: Height 3.46 in. (8.78 cm), Width 19.03 in. (48.33 cm), Depth 25.51 in. (65 cm). Weight: 48.50 lb (22 kg) fully loaded without optics. Installs with QFX5240-2U-4PRMK four-post toolless rack mount kit.
Power and Cooling
Two 12.2-V, 3000-W DC PSUs (hot-insertable/hot-removable, 1+1 redundancy, load sharing). Four QFX5240-2U-FANAO fan modules (80 mm x 80 mm x 80 mm, 12.2 V, N+1 redundancy, AFO front-to-back airflow).
Component Redundancy and FRUs
PSUs and fan modules are hot-insertable/hot-removable FRUs. Cooling offers N+1 fan redundancy; fan replacement: 2 min at 77°F (25°C), 30 sec at 95–104°F (35–40°C).
Ordering Information
- Main Unit: QFX5241-64QD-DO (64 QSFP-DD ports, DC PSU, AFO)
- Spare Chassis: QFX5241-64QD-CHAS
- PSU (Spare): QFX5241-PWR-DC-AO (3000 W DC, AFO)
- Fan Module (Spare): QFX5240-2U-FANAO (AFO)
- Rack Mount Kit: QFX5240-2U-4PRMK
