Product Overview

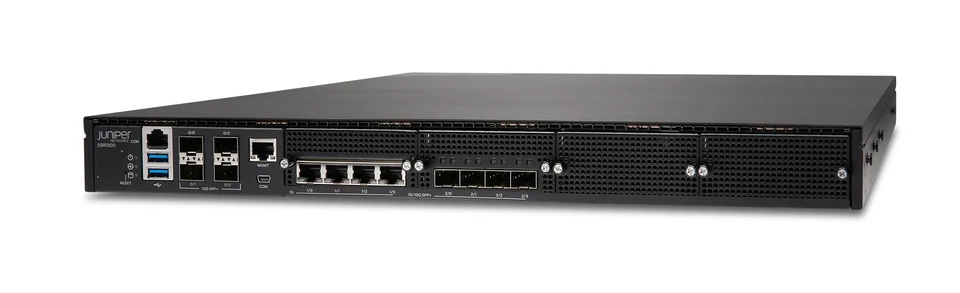

The Juniper SSR1300-CHAS is a high-performance 1U fixed chassis Session Smart Router designed for enterprise networks requiring stringent performance, security, and availability. It provides a flexible, application-aware network fabric with 4x RJ-45 ports and 8x SFP+ ports, delivering up to 20 Gbps aggregate unencrypted throughput and 18 Gbps encrypted (IMIX) performance.
Hardware Architecture & Performance
Powered by 128 GB DRAM and 256 GB SSD storage, the SSR1300-CHAS excels in security-focused workloads: 20 Gbps aggregate encrypted (1518B), 18 Gbps aggregate encrypted (IMIX), 12 Gbps aggregate encrypted + HMAC (1518B), 5 Gbps aggregate encrypted + HMAC (IMIX), and 20 Gbps aggregate unencrypted (IMIX/1518B). Front-to-back airflow ensures efficient cooling in data center environments.
Ports and Connectivity
Built-in network ports include 4x RJ-45 and 8x SFP+ for high-speed 10G connectivity. Additional interfaces: 1x RJ-45 console, 1x Micro-USB console, 1x RJ-45 management, 2x USB 3.0 Type A. Supports a wide range of transceivers including EX-SFP-10GE-LR/SR, QFX-SFP-10GE-LR/SR, SRX-SFP-10GE-LR/SR, and various 1GE LX/SX options.
Power, Cooling, and Reliability
Dual redundant (1+1) hot-pluggable PSUs (JNP-650W-AC-SSRHE) with 411.75 W max AC power consumption. Four hot-swappable JNP-FAN-SSRHE fan modules. MTBF of 165,381 hours. Operating temperature 32° to 104° F (0° to 40° C).
Physical Specifications
1U form factor: Height 1.73 in (4.3942 cm), Width 17.24 in (43.7896 cm), Depth 25.59 in (64.9986 cm). Weight 42.33 lb (19.2 kg) fully loaded.
Ordering Information
- SSR1300-CHAS: Chassis
- JNP-650W-AC-SSRHE: AC Power Supply Unit
- JNP-FAN-SSRHE: Fan Module (x4)
